INKREDIBLE 3D BIOPRINTER

How to use Inkredible 3D BIO-Printer

The INKREDIBLE 3D Bioprinter is the most user friendly yet ﬂexible bioprinter in the world, providing the user with an unparalleled bioprinting experience. The builtin features along with the new software managed through the large touch screen display minimizes the learning curve, increases effectivity, and ensure you will receive the results you want.

INKREDIBLE 3D Bioprinter allows you to print human tissue right in front of your eyes. It offers excellent accuracy, high reproducibility, and ease of use. It has been optimized to print Skin and Cartilage tissue, however, the sky is the limit on what tissues you can print. The world is waiting to see what you will print next.

Bioprinted tissue can be used in drug discovery where researchers can test new potential treatments and evaluate effcacy in very early stages. New drugs and treatments will potentially reach clinical trials faster with a decreased number of failures and reduce need of animal testing.

INKREDIBLE 3D Bioprinter is capable of printing any cells, including:

Bone marrow stromal cells (BMSC)
Mesenchymal stem cells (MSC)
Chondrocytes
Cardiac Progenitor Cells (CPC)
Human Umbilical Vein Endothelial Cells (HUVEC)
Fibroblasts
Many more!

INKREDIBLE 3D Bioprinter is equipped with features scientst have been waitng for

- WIDE MATERIAL RANGE

Whether it’s tissues like heart, skin, cartilage or bone, the user has full liberty in the selection of biomaterials for their tissue applications.

- USER-CENTERED DESIGN

Navigate the integrated and easy to use BIO X software through its 7” touch screen display, designed to guide the user and facilitate the process.

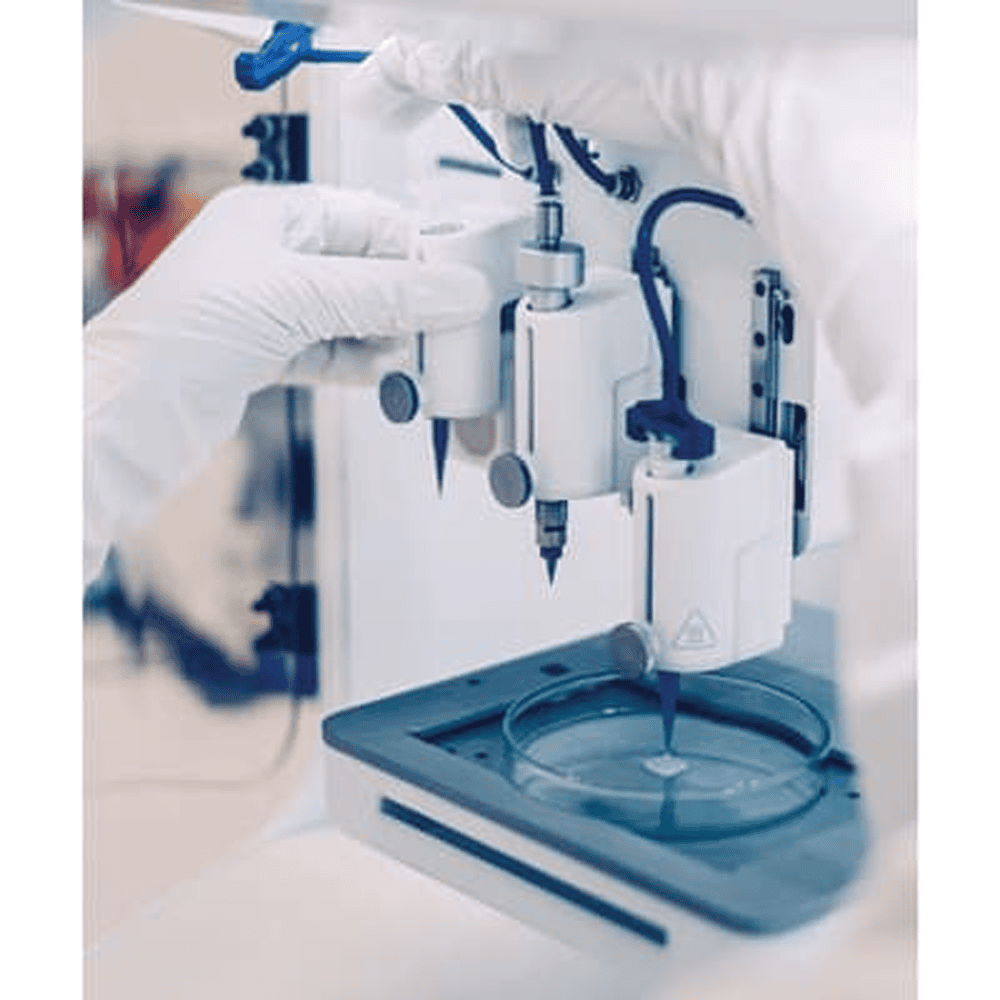

- INTELLIGENT PRINTHEADS

User exchangeable, intelligent printheads with a wide range of features, making it possible to bioprint a wide range of bioinks and cells with minimal effort.

- STAND ALONE UNIT

With its integrated air supply, cooling system, compressor, touch screen and WiFi connectivity

Main Specification

PRINT AND TOOL HEADS
Print heads	Heated pneumatc print head Ink-jet print head Thermoplastc flament extruder Cooled pneumatc print head Extra heated pneumatc print head Syringe pump print head
HARDWARE
Filters included	HEPA H14, retenton rate 99.995% Preflter (larger partcles)
Sofware	Integrated
Supported fle types	.STL
Connectvity	Ethernet, Wi-Fi, USB
Machine size	(H/W/D) 500x360x450mm
Machine weight	17kg
Shipping weight	21kg
Power input	100-240V, 50-60Hz, 600W
Fuse	250V T8A
Structure	Powder coated, aluminum frame
PRINTING
Build volume	130x90x70 mm
Layer resoluton	1 µm
Positoning resoluton	1 µm
Calibraton	Automatc
Printbed temperature control	4-60 °C
Printhead temperature control	Cooling/heatng printheads available
Pressure	0-700 kPa
Materials per scaﬀold	3, using 3 printheads
Photo curing LED	Default: UV 365 nm and 405 nm Other wavelengths available upon request
Printhead actuaton	Mechanical high precision

ADDITIONAL FEATURES

Integrated air supply
Integrated compressor
Dual power fans
Positve chamber pressure
UV-C germicidal lamps, 275 nm, 2 Wat
Modular system of triple printng nozzles
7” LCD touch screen, usable while wearing gloves
