Remote Shaker with LCD Touch Screen

  • Extremely low heat release from shaker
  • Moisture resistant structure
  • Wire Remote Control box
  • Thin wire cable connection between shaker and control box
  • 3.5 inch LCD touch screen
NBT101SRC / NBT101MRC / NBT101MRCS
Speed Range: 30 to 300rpm

Orbit Diameter: 22mm

Drive System: Beltless Direct Drive

Shaking Motion: Orbital

Remote Shaker with LCD Touch Screen

Products Features

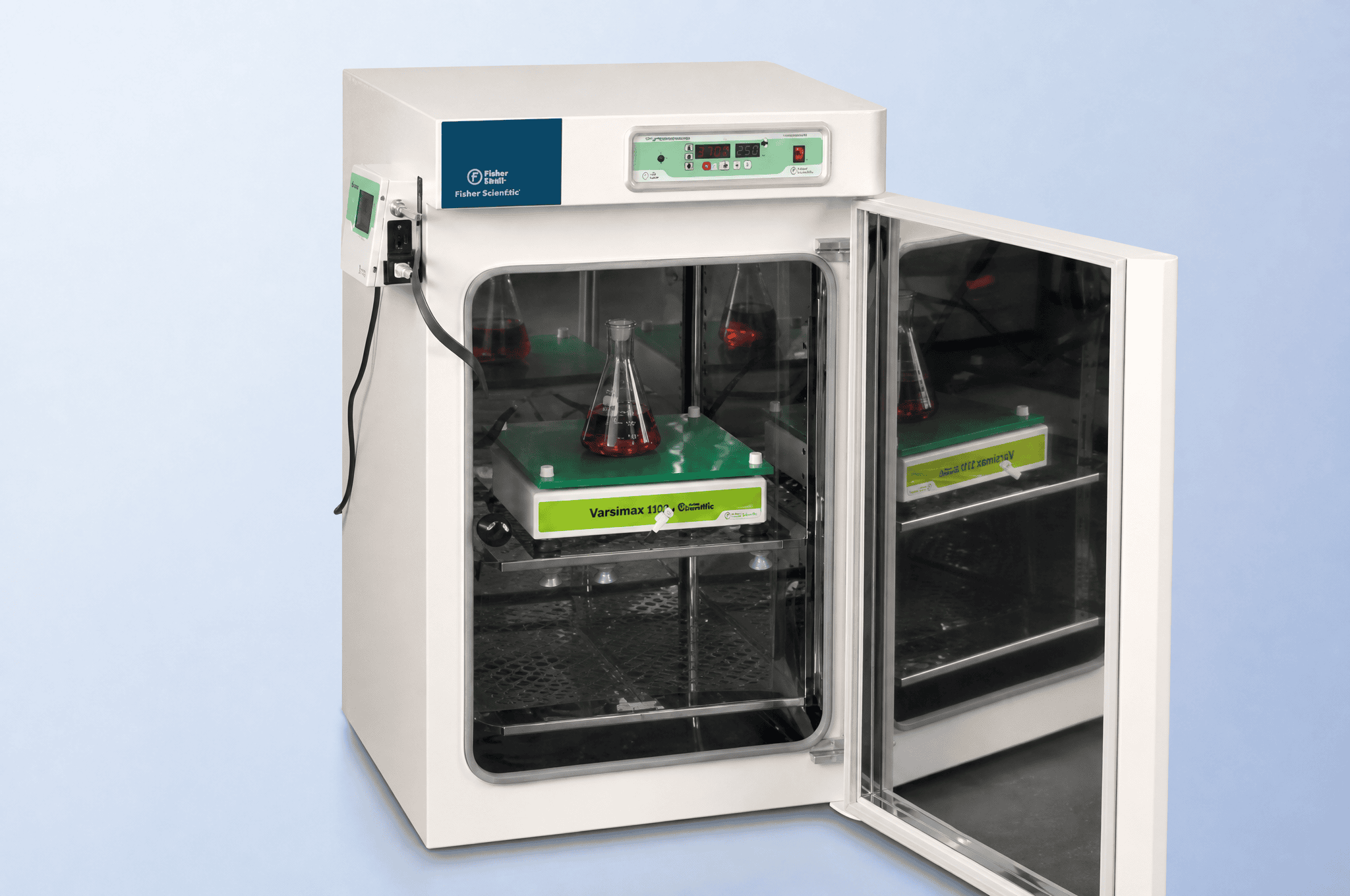

Specially designed shaker with remote controller is CO2 & humidity resistant for the use in an incubator. Convenient external wired remote controller offers outside control when the shaker is in an incubator. All remote controller include 3.5 inch LCD touch screen which displays multiple information in one colored screen. Beltless magnetic drive provides stable and powerful shaking up to 300 rpm with 22mm orbit diameter.

Extremely low heat release from shaker

The BLDC motor of shaker is powered by very low watt electricity so heat from shaker motor is very low. This is ideal for the shaker to use inside incubator or chamber where uniform temperature maintenance is required.

Moisture resistant structure

Electric coil and some electric part of shaker motor are coated with epoxy which protect electric parts from high humidity. Indeed, other electric parts such as mainboard, LLED display are installed in remote box to be away from high humidity, CO2 or extreme environment like high or low temperature.

Wire Remote Control box

This allows user to control the shaker out of incubator. It display show shaker status clearly so user don’t need to open incubator door to check. This saves time and minimizes energy loss caused by opening incubator door.

Thin wire cable connection between shaker and control box

Very thin wire cable enable to pass through sealing part of inner glass door although no access port is in your incubator.

Place remote box with magnet or hanger or just standing

Depending on material type of incubator or situation of lab, placing remote box is available with 3 options such as magnet attachment, hanging with strap hanger, or just standing on top of incubator (or on table near incubator).

3.5 inch LCD color touch panel

The 3.5 inch easy-to-read LCD touch screen displays shaking speed in RPM and timer to assure that the shaker is running according to the setting value and also it enables an user to adjust the values precisely even with gloved fingers.

1) The easy-to-read view
2)Precise and user-friendly control
3) Easy to clean
4) Able to setup step program

Specification

NB-T101SRC NB-T101MRC NB-T101MRCS
Motion Orbital Orbital Orbital
Speed Range 30 to 300rpm(No Load) 30 to 300rpm(No Load) 30 to 300rpm(No Load)
Speed Accuracy ±1rpm ±1rpm ±1rpm
Speed Increment 1rpm 1rpm 1rpm
Timer Continuous or up to 99h 59min 59sec (4 different timer as a Step Program) Continuous or up to 99h 59min 59sec (4 different timer as a Step Program) Continuous or up to 99h 59min 59sec (4 different timer as a Step Program)
Display 3.5 Inch LCD Color Touch Screen 3.5 Inch LCD Color Touch Screen 3.5 Inch LCD Color Touch Screen
Motor Plate Type Brushless DC Motor Plate Type Brushless DC Motor Plate Type Brushless DC Motor
Drive System Beltless Direct Drive Beltless Direct Drive Beltless Direct Drive
Orbit Diameter 22mm 22mm 22mm
Control Box Size/Weight 190(W)x50(D)x140(H)mm / 2kg 190(W)x50(D)x140(H)mm / 2kg 190(W)x50(D)x140(H)mm / 2kg
Platform Size 300(W)x330(D)mm 450(W)x450(D)mm 420(W)x410(D)mm
Shaker Dimensions 305(W)x350(D)x85(H)mm 465(W)x540(D)x125(H)mm 454(W)x430(D)x127(H)mm
Weight 7.5kg 35kg 23kg
Power 110/220V, 50/60Hz 110/220V, 50/60Hz 110/220V, 50/60Hz

Accessories for NB101SRC

101S-H10 100ml Flask Holder x 16ea with Platform
101S-H25 250ml Flask Holder x 9ea with Platform
101S-H50 500ml Flask Holder x 5ea with Platform
101S-H100 1000ml Flask Holder x 4ea with Platform
101S-SR Spring Rack with Platform
101S-MP Microplate Rack<6ea> with Platform
101S-PL Universal Plate without holders mounted
101S-2S 2 Stairs (4 Supporters with Platform)
101S-SWPL Switchable Shaking Motion Platform (ORBITAL & RECIPROCATING)
101-STICKY-S Sticky Mat 300mm X 330mm <1Pcs>

Accessories for NB101MRC

101M-PL Universal Plate without holders mounted
101M-H10 100ml Flask Holder x 36ea with Platform
101M-H25 250ml Flask Holder x 23ea with Platform
101M-H50 500ml Flask Holder x 16ea with Platform
101M-H100 1000ml Flask Holder x 9ea with Platform
101M-H200 2000ml Flask Holder x 4ea with Platform
101M-SR Spring Rack
101M-MP-6 Microplate Holder<6ea> with Platform
101M-MP-9 Microplate Hoder<9ea> with Platform
101M-MP-12 Microplate Holder<12ea> with Platform
101M-2S 2 Stairs (4 Supporters with Platform)
101-STICKY Sticky Mat 400mm X 500mm <1 Pcs> (For NB101MRC, NB101MRCS)
