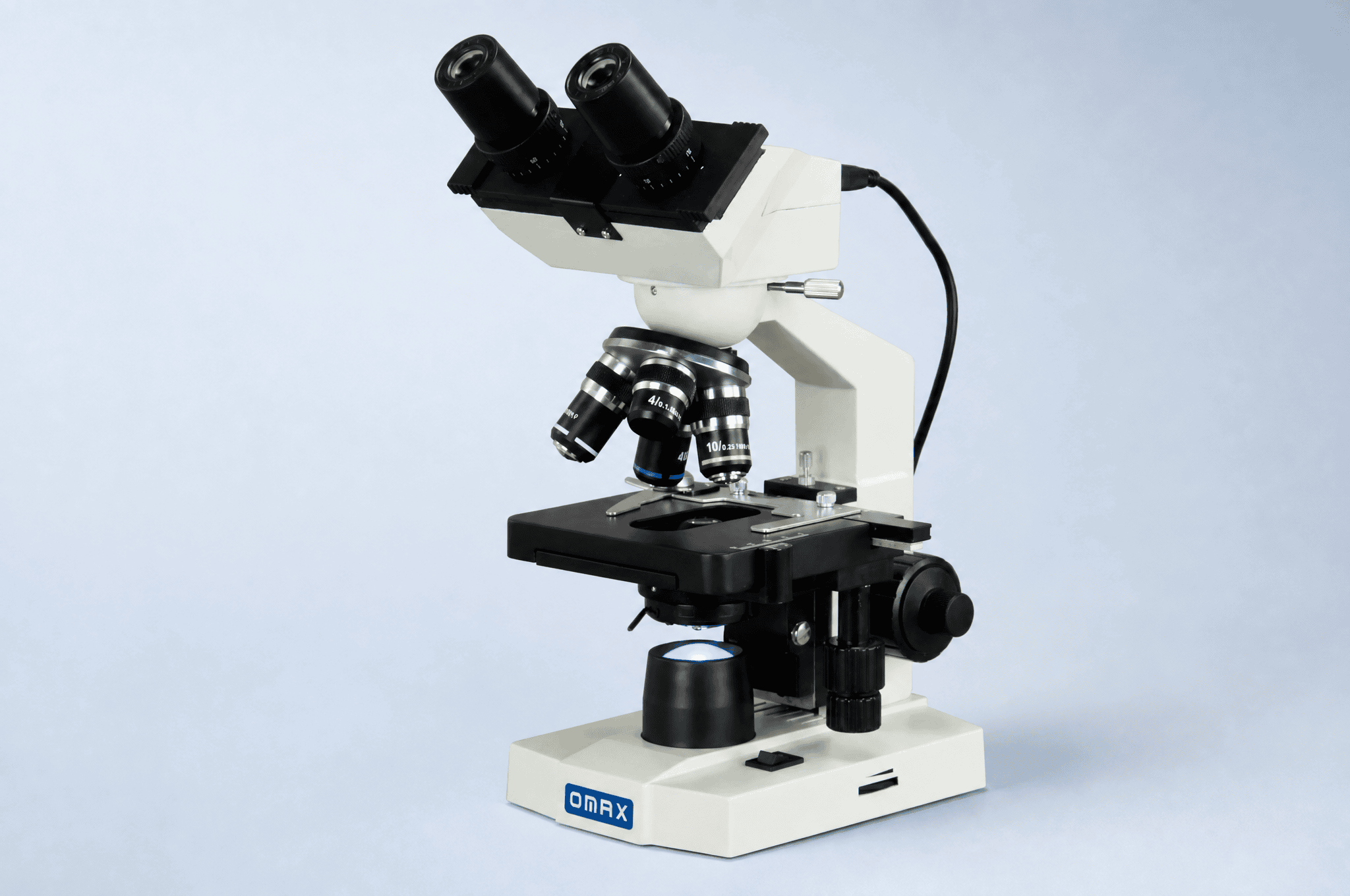

Stem Cells Microscope with LED Illumination

Key Features

This easy-to-use binocular student microscope with built-in camera is perfect for classrooms.
Stream and capture live images to your computer with this binocular compound microscope with integrated 1.3MP camera.
40X to 2500X magnification with four objective lenses and two sets of eyepieces.
Daylight-balanced, low-heat LED light-source provides bright transmitted illumination for viewing and imaging specimens.
Double-layer mechanical stage and coaxial coarse and fine focus for easy, precise adjustments.

Optical System	Finite-conjugate

Tube Length	160mm

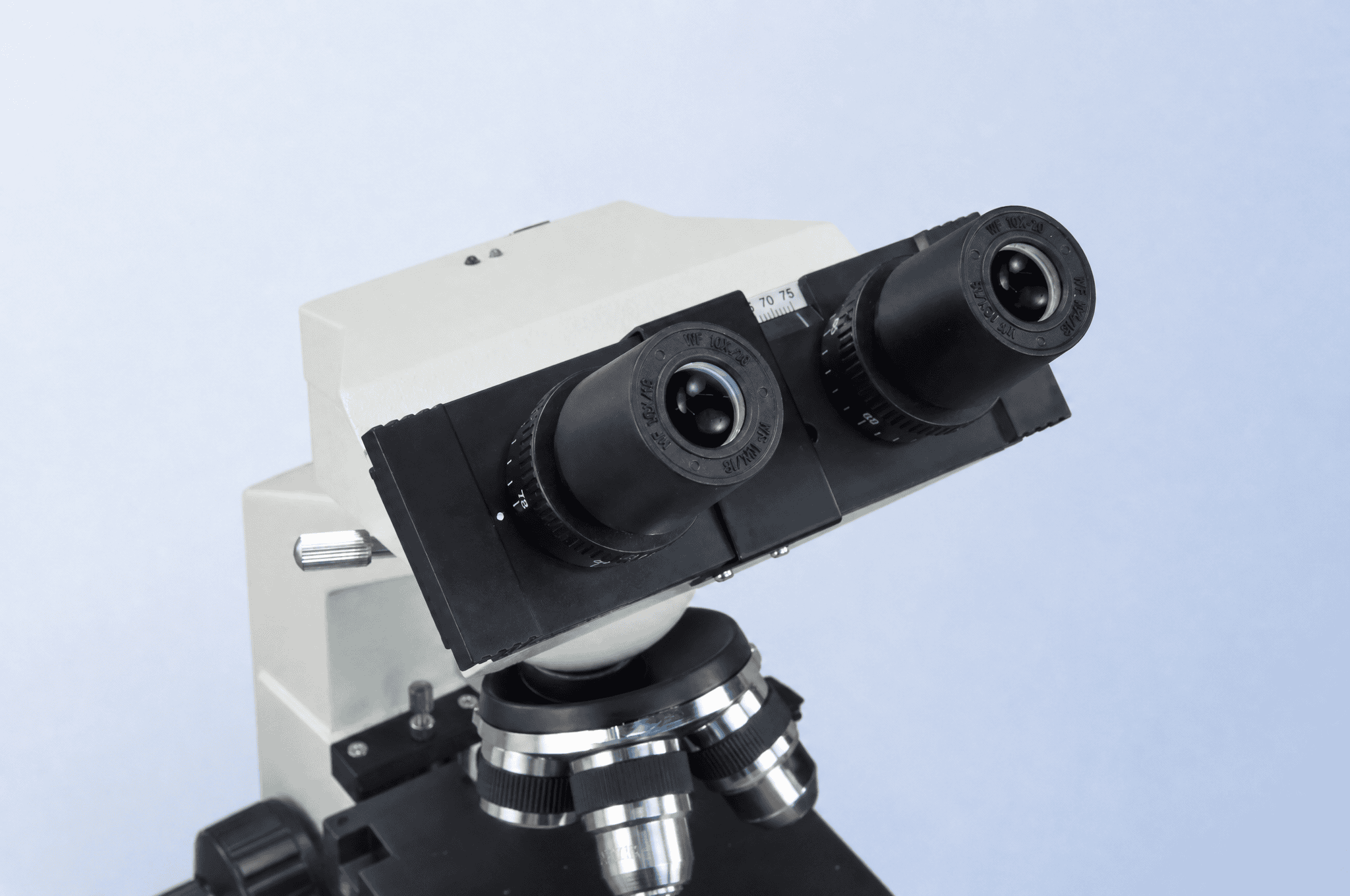

Head	Digital-integrated binocular, 45° incline, 360° rotatable

Interpupillary Adjustment	Sliding, 55-75mm

Ocular Diameter	23mm

Eyepieces	10X, 25X

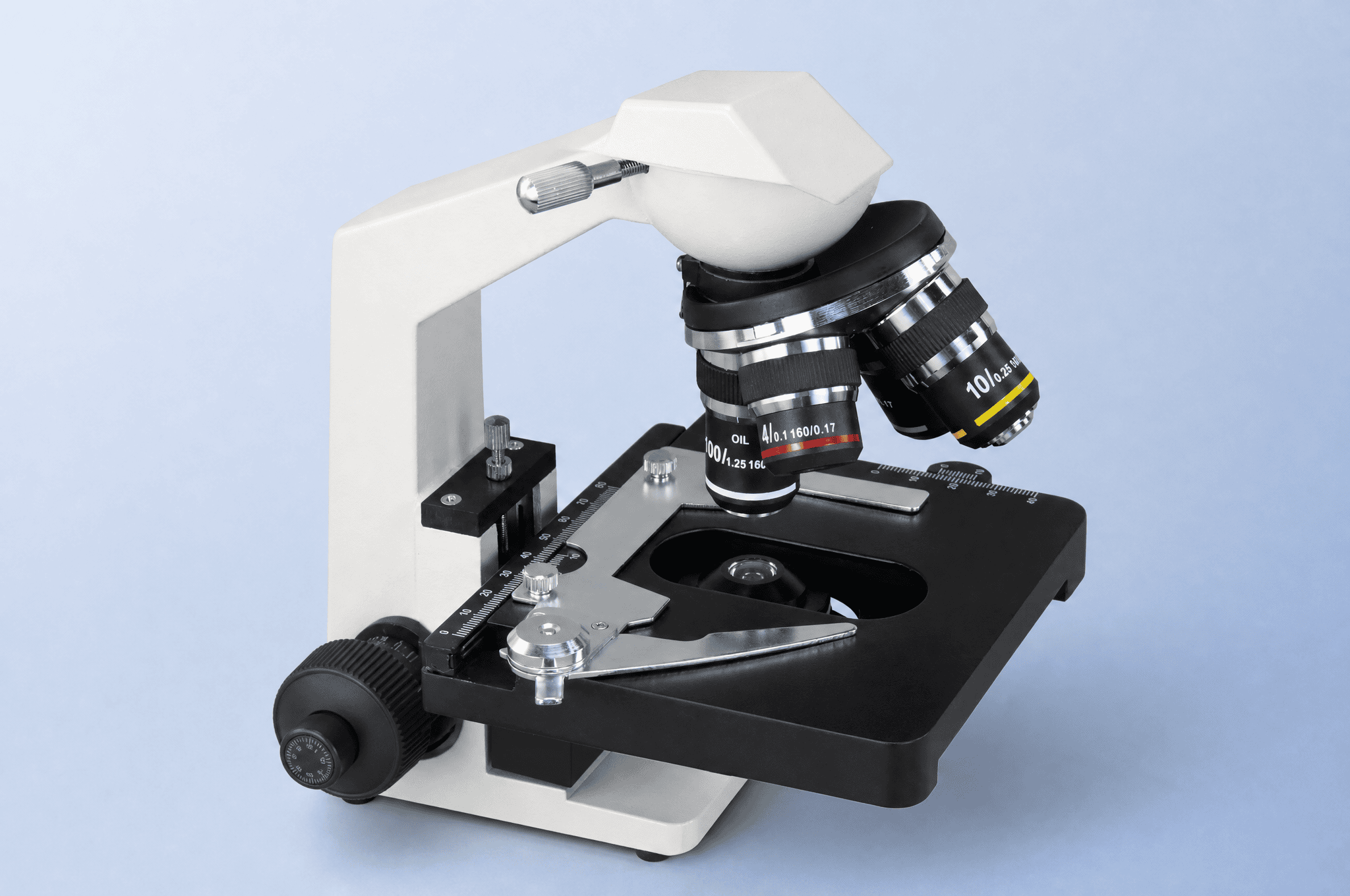

Objective Turret	quadruple

Focusing System	coaxial coarse and fine focus

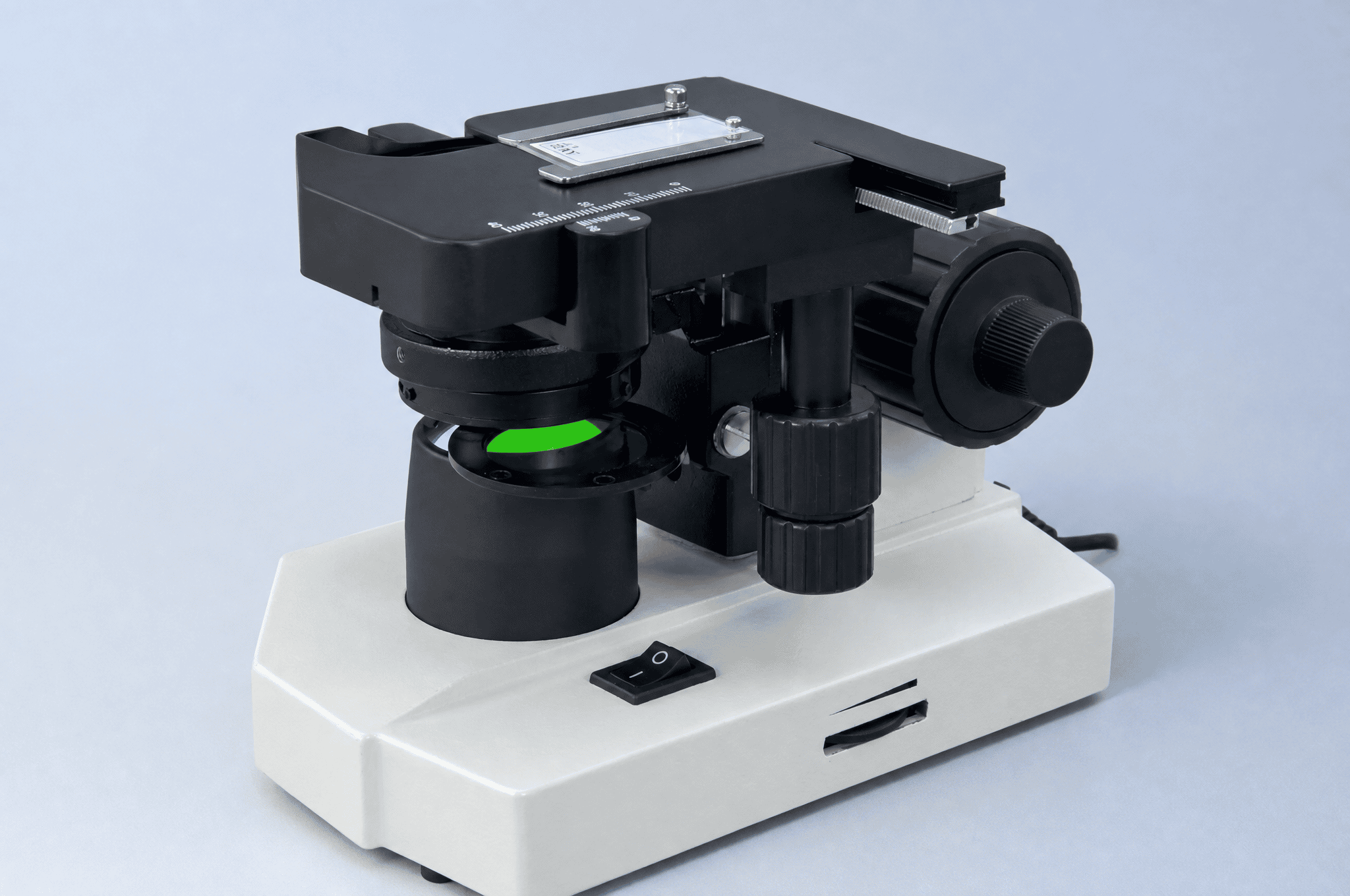

Stage	2-layer mechanical

Stage Dimensions	125mm x 115mm

Stage X-Y Travel Range	70mm x 30mm

Specimen Holders	Slide caliper

Transmitted Illumination	1W LED, variable intensity

Condenser	Abbe condenser with iris diaphragm, NA1.25

Sub-stage Condenser-holder	Rack-and-pinion

Power	100-240VAC 50/60Hz wide-band

Dimensions	9-1/16" x 7-1/8" x 13" (23cm x 18cm x 33cm)

Magnification	Corrections	NA	Immersion Medium	Cover-glass Thickness
4X	achromatic	0.10	none	0.17mm
10X	achromatic	0.25	none	0.17mm
40X	achromatic	0.65	none	0.17mm
100X	achromatic	1.25	oil	0.17mm

Camera Specifications

Sensor Type	CMOS

Sensor Optical Format	1/2.5"

Active Pixels	1.3M (1280 x 1024)

Shutter	electronic rolling shutter

Capture Resolution and Maximum Framerate	6fps @ 1280x1024 10fps @ 1024x768

Connectivity	USB 2.0

Power	5VDC over USB

OS Requirements

Windows (32/64 bit) XP/Vista/7/8/10

Hardware Requirements

Intel Core2 2.8GHz or comparable processor, 2GB RAM, USB2.0 port

Features

Windows Version

Live video preview

Captures still images and video

Exposure and white-balance controls

Image processing

Measurement tools, including lines, arcs, polygons

For ages 14+
