Features
- Dual Function.
- Shaking or Rolling is conducted with general incubation on shelves at one time.
- Microprocessor PID control.
- Control temperature and timer as well as function such as shaking or rolling.
- BLOC motor system In NB-205Q.
- Blush Less DC motor installed in shaker of NB-205Qallows no vibration, no particle occurrence, no noise which enhance stable running of shaker or roller.
- Automatic Stop when opening door.
- The shaker or roller automatically stops if the door is opened.
- Window on outer door.
- User can observe sample or working status of shaker or roller in chamber through the window at center of door.
| MODEL | NB-203QS | NB-203QR | |
|---|---|---|---|
| Chamber Volume | 180L | ||
| Loading Capacity | – | ||
| Built-in Apparatus | 1 Shaker | 1 Roller Apparatus | |
| Temperature | Range | Ambient +5℃ to 60℃ | |
| Accuracy | ±0.25℃ at 37℃ | ||
| Increment | 0.1℃ | ||
| Control | Microprocessor Digital PID | ||
| CO₂ | Range | 0% to 20% | |
| Accuracy | ±0.1% at 5% (at 37℃) | ||
| Increment | 0.1% | ||
| Sensor | Dual-Beam NDIR CO₂ Sensor | ||
| Control | Microprocessor Digital PID | ||
| Inlet Pressure Range | ≥1.0 bar | ||
| RPM | Range | 30rpm to 300rpm | 1rpm to 30rpm |
| Accuracy | ±1rpm | ±0.1rpm | |
| Increment | 1rpm | 0.1rpm | |
| Control | Microprocessor Digital Controller | ||
| Time | Range | Continuous or 99h 59min | |
| Accuracy | – | ||
| Increment | – | ||
| Memory | – | Remaining Time | |
| Heating | 6-side Direct Heating | ||
| Humidity | ≥80% at 37℃ | ||
| Filter | HEPA Filter | ||
| Chamber Material | SUS304 | ||
| Motor | – | ||
| Shelves | 2 Shelves | 2 Shelves (2 Bottles per Layer) | |
| Door | Out Door | Magnetic Door with Silicone Gasket | |
| Inner Door | Tempered Safety Glass Door | ||
| Display | LED Display | ||
| Operating Panel | Tact Switch Buttons | ||
| Dimensions | Interior | 473(W) × 528(D) × 710(H)mm | |
| Exterior | 560(W) × 665(D) × 945(H)mm | ||
| Weight | – | ||
| Power (110V available) | Input | AC220V, 50/60Hz | |
| Power Consumption | 410W | ||

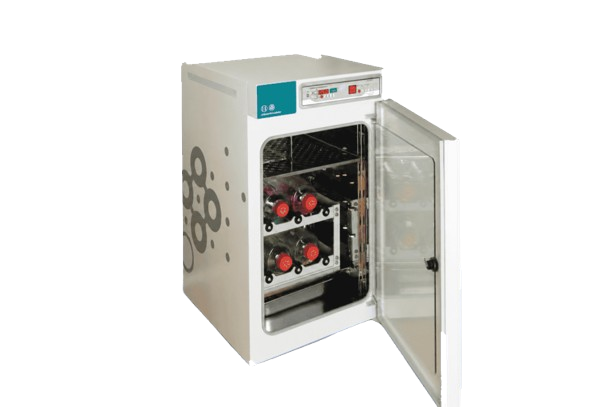

Product: GENERAL INCUBATOR WITH BUILT-IN ROLLER OR SHAKER
