• IR-emitting Plate Glass lid (Patent No.10-0616063)
  • No cross-contamination, No sample loss
  • Wide selection of rotor
  • Designed for heat-sensitive sample
Temp. Range: +4°C to 80°C

Speed Range: Max up to 1,500 rpm

Vacuum Ultimate Pressure: 2mbar


Products Features

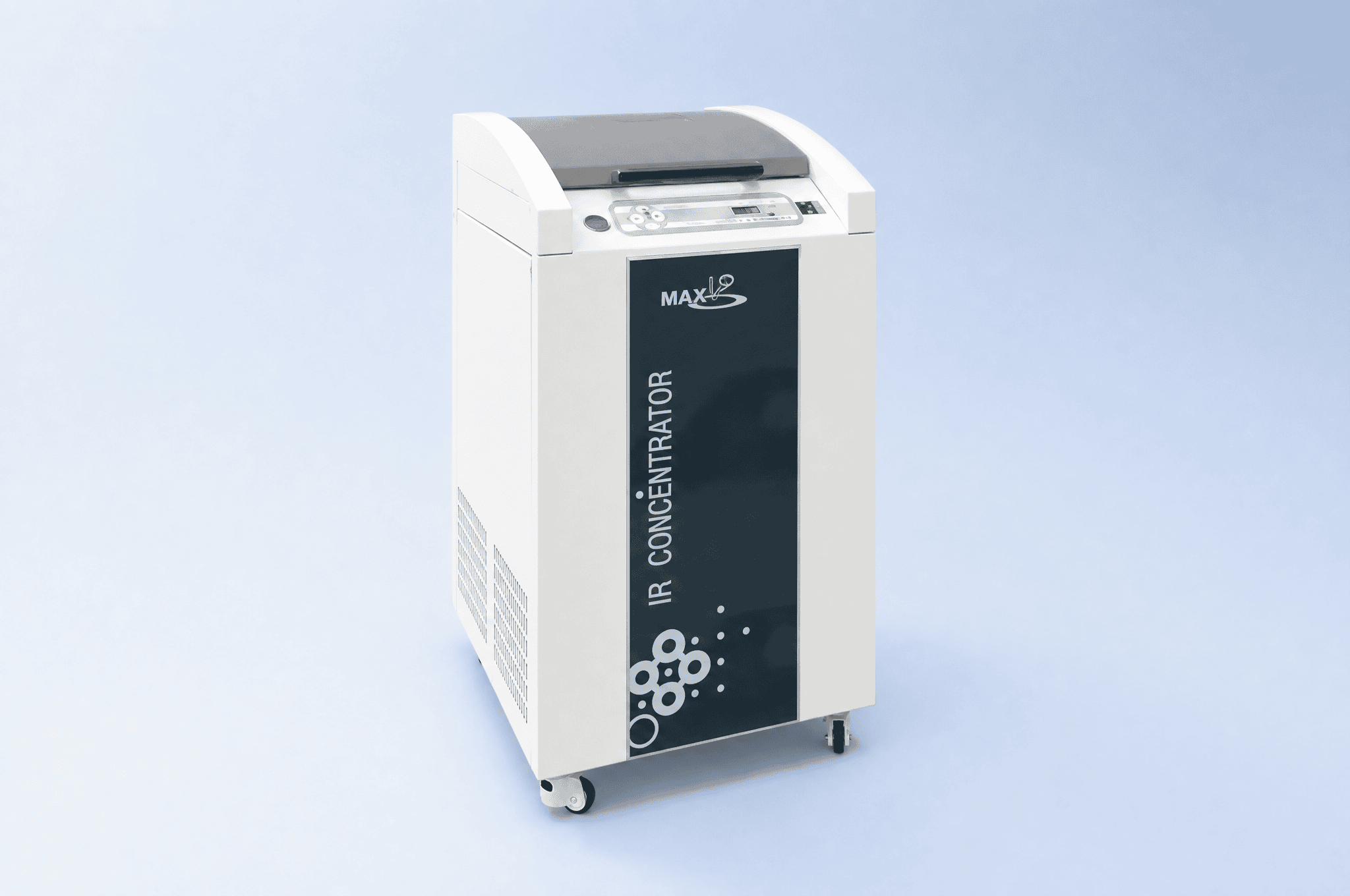

IR CONCENTRATOR is high efficient concentration equipment to study micro-protein or molecular structure, extracted DNA or RNA.
The required sample are extracted by concentrating DNA or RNA, Amino acids, Hormones, Enzymes, Protein in a short time by using vacuum pump and far Infrared ray.

IR-emitting Plate Glass lid (Patent No.10-0616063)

With the use of infrared ray, the sample can be concentrated efficiently in a vacuumed chamber in a short time.

Designed for heat-sensitive sample

It is available for the wide range of heat sensitive materials such as proteins and other organic substances.

Two-point Temperature Sensors

Two temperature sensors in the chamber and bucket provide efficient concentration.

Detector to check unbalance of rotor

The detector checks the unbalance of rotor caused by the difference quantities of remaining samples during concentrating. The function ensures the environment of experiment is in a safety.

Pre-heating mode

Pre-heating function allows to shorten experiment time by setting the temperature prion to use.

No cross-contamination, No sample loss

The contamination and sample loss is minimized because the exhalation hole for the vacuum is located on the center of the shaft.

Compact & Mobile System

Chemical free diaphragm vacuum pump and Cold trap is built-in the equipment. It’s suitable for individual researchers with limited space.



Temp. Range +4°C to 80°C
Temp. Control Microprocessor Digital PID
Temp. Increment 0.1°C
Temp. Standby Pre-heat
Operating Panel Touch Button
Heat Mode IR / IR&HEAT / HEAT
Display LED Display
Capacity 1.5ml micro-tube x 132ea(or 60ea) / 15ml tube x 12ea / 50ml tube x 8ea / 250ml tube x 4ea / 96 well micro plate x 2ea
Speed Range Max up to 1,500rpm
Vacuum Pump Chemical Resistant PTFE Coated Diaphragm Pump
Vacuum Ultimate Pressure 2mbar
Vacuum Gauge Analog Vacuum Gauge
Cold Trap -20°C, 2 liter Trap
Dimensions 600(W)x630(D)x1085(H)mm
Power 110/220V, 50/60Hz
Weight 138kg

Accessories for NB504CIR

504-15132 Rotor 1.5ml x 132ea
504-15012RO Rotor 15ml
504-15012BU Bucket 15ml x 12ea
504-50008RO Rotor 50ml
504-50008BU Bucket 50ml x 8ea
504-25004RO Rotor 250ml
504-25004BU Bucket 250ml x 4ea
504-PLATE Carrier for 96 well microplate x 2ea
