Roller Apparatus Max-Roll

Products Features

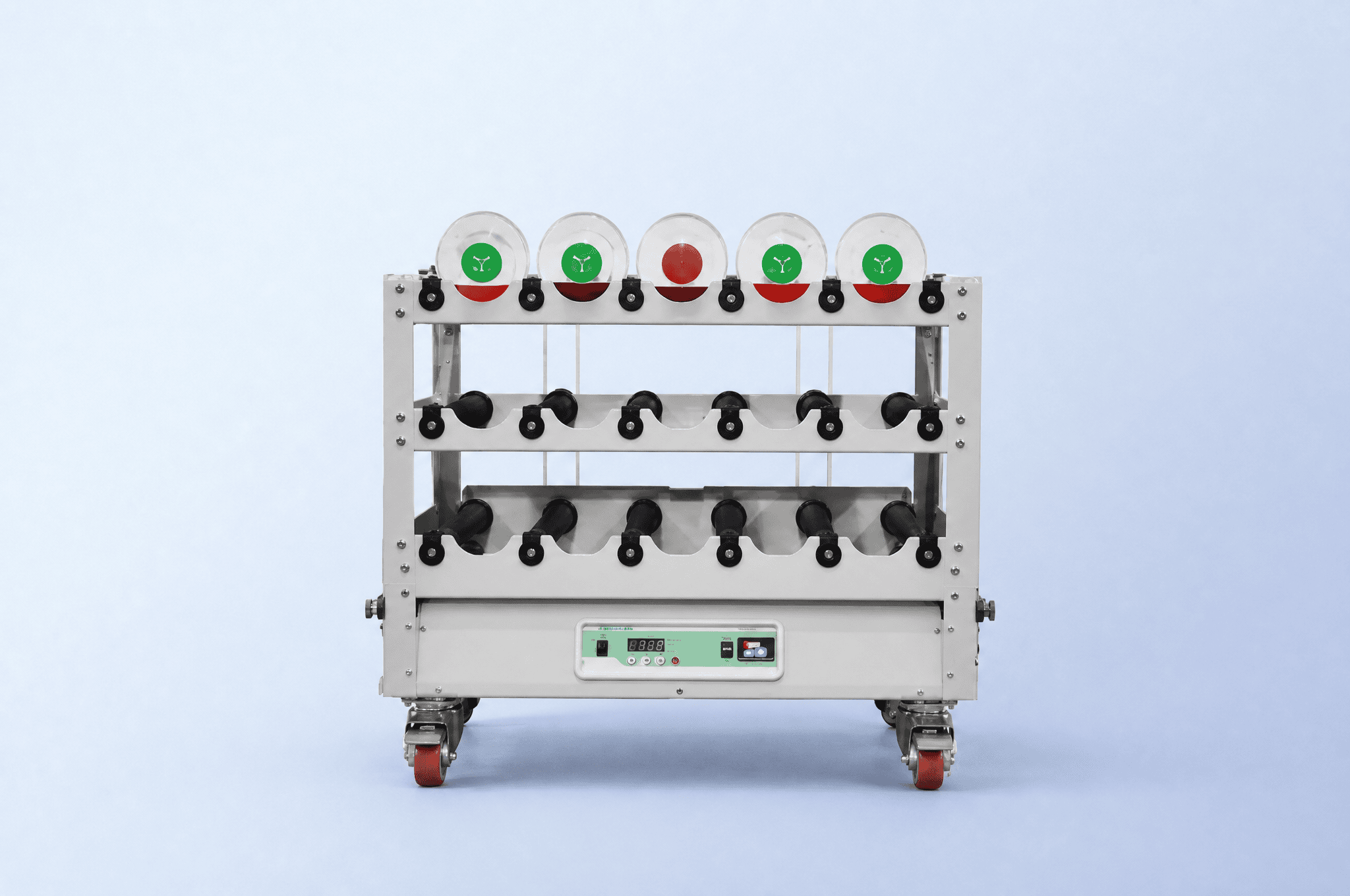

N-BIOTEK Roller Apparatus is designed for using in the production of massive attachment cells. The rollers are available in 10 bottles per one deck and up to 100 bottles in 10 decks of roller. Roller’s DC motor makes less vibration and low noise for stable rotation. All rollers are available to use in N-BIOTEK’s large capacity incubator, Max Cell Giant.

Maintenance free brushless DC motors

for low noise and vibration

Large loading capacity up to 100 bottles

2 bottles in one rolling part

Steel reinforced polyurethane timing belts

for years of trouble-free operation

Power coated aluminum body

for durability and cleanliness, rust-proof

Caster for mobility and caster locks for immobility

Oil lubricants free system

Auto-restart after power failure

Audible alarm & optional alarm contact

for the error in belt and motor

Built-in battery back-up (Optional)

approx. 24 hours of operation in the event of power failure

Specification

NB-204GR3 NB-204GR10
Speed Range 1rpm to 30pm (*Based on 2Liter Bottle rpm) 1rpm to 30rpm (*Based on 2Liter Bottle rpm)
Speed Resolution 0.1rpm 0.1rpm
Speed Increment 0.1rpm 0.1rpm
Time Range 1 minute to 99 hours 59 minutes or Continuous Operation 1 minute to 99 hours 59 minutes or Continuous Operation
Time Accuracy ±1% ±1%
Display 5 Digit LED Display 5 Digit LED Display
Motor DC Motor DC Motor
Maximum Bottle Loading Capacity (2Liter Bottle*) 110 to 120mm, 30ea *Bottle Length below 250mm 110 to 120mm, 100ea *Bottle Length below 250mm
Roller Deck Dimensions 750(W)x564(D)mm 750(W)x564(D)mm
Overall Dimensions 756(W)x626(D)x642(H)mm 756(W)x626(D)x1799(H)mm
Ambient Temperature 0 to 50°C 0 to 50°C
Ambient Humidity 35 to 85% RH 35 to 85% RH
Motor Control 32bit DSP PWM Drive 32bit DSP PWM Drive
Motor Input Voltage 24vdc±10% 24vdc±10%
Alarm Function Buzzer, Display Buzzer, Display
Power AC90 to 264V, 50/60Hz, Max 70W AC90 to 264V, 50/60Hz, Max 75W
Weight About 40kg or less About 80kg or less

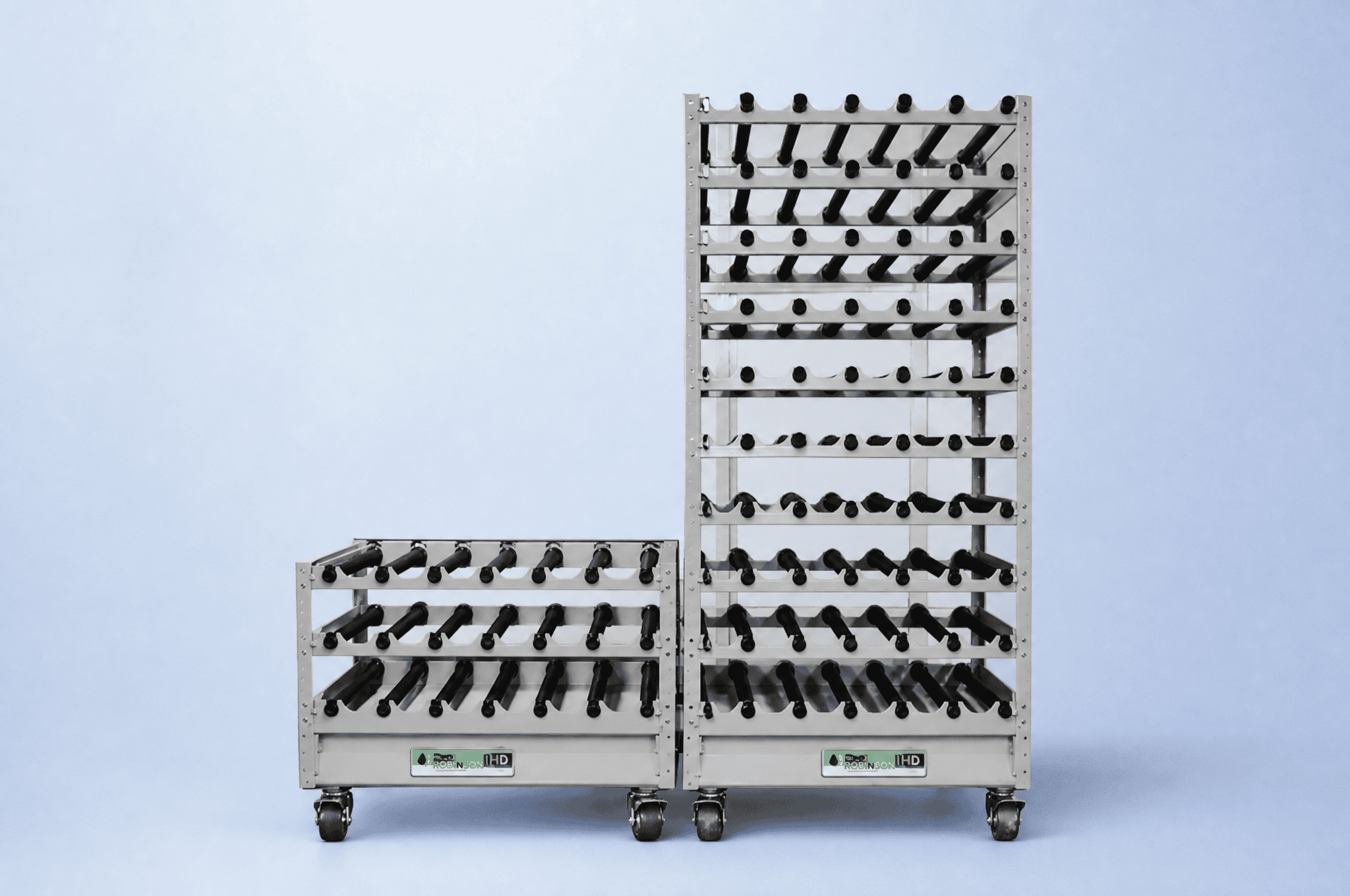

Option for NB204GR Series

NB-204GR2 2 Stack Roller Apparatus for 2L Bottle x 10ea per one stack
NB-204GR3 3 Stack Roller Apparatus for 2L Bottle x 10ea per one stack
NB-204GR4 4 Stack Roller Apparatus for 2L Bottle x 10ea per one stack
NB-204GR5 5 Stack Roller Apparatus for 2L Bottle x 10ea per one stack
NB-204GR6 6 Stack Roller Apparatus for 2L Bottle x 10ea per one stack
NB-204GR7 7 Stack Roller Apparatus for 2L Bottle x 10ea per one stack
NB-204GR8 8 Stack Roller Apparatus for 2L Bottle x 10ea per one stack
NB-204GR9 9 Stack Roller Apparatus for 2L Bottle x 10ea per one stack
NB-204GR10 10 Stack Roller Apparatus for 2L Bottle x 10ea per one stack

Lot-traced  ·  COA on file  ·  Sterility & mycoplasma tested

Dose of Peptide

Strength of Peptide

Water of Peptide

Results

PEPTIDE DOSE: Select dose

DRAW SYRINGE TO: Select values

Injection Calculator Syringe

YOUR VIAL CONTAINS: Select values

CONCENTRATION: Select values

Roller Apparatus Max-Roll

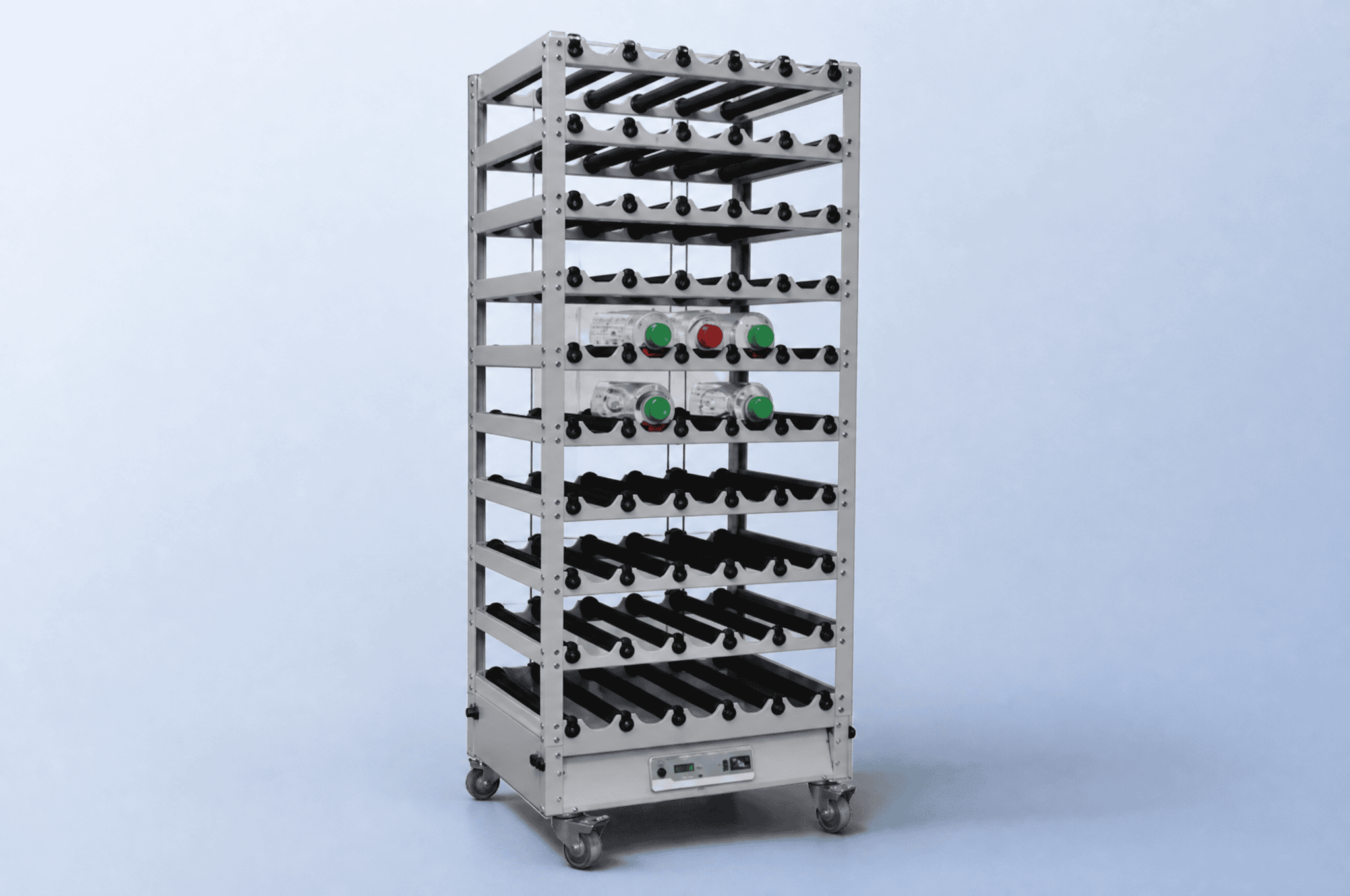

The Roller Apparatus Max-Roll is a high-capacity roller culture system designed for large-scale attachment cell production and laboratory expansion workflows. Engineered to support up to 100 roller bottles across 10 decks, the system provides stable and uniform rotation for efficient cell culture performance.

Equipped with maintenance-free brushless DC motors, reinforced timing belts, and a durable powder-coated aluminum structure, Max-Roll delivers low-noise, low-vibration operation for reliable long-term use. Compatible with large-capacity incubator systems, the apparatus supports consistent culture conditions while maximizing productivity and laboratory efficiency.

Product specifications.

Format

Multi-Deck Roller Apparatus for Cell Culture

Purity

Low-Vibration Brushless DC Drive System

Vial sizes

Supports up to 100 Roller Bottles (2L Bottle Capacity)

Storage

Store and Operate in Indoor Laboratory Conditions

Reconstitution

Not Applicable – Ready-to-Operate Equipment

COA

Product Documentation and Technical Specifications Available Upon Request

Key Applications

Large-Scale Cell Culture

Designed for high-volume attachment cell production and expansion.

Biotechnology Research

Supports laboratory workflows requiring roller bottle culture systems.

Cell Manufacturing

Suitable for research and production environments requiring stable rotation conditions.

Laboratory Incubation Systems

Compatible with large-capacity incubators for controlled culture environments.

Roller Apparatus Max-Roll Faqs Questions:

The system supports up to 100 roller bottles using a 10-deck configuration.
Max-Roll utilizes maintenance-free brushless DC motors for smooth and stable operation.
The roller speed is adjustable from 1 to 30 rpm with 0.1 rpm resolution.
Yes. Auto-restart functionality is available after power failure.
It is suitable for cell culture laboratories, biotechnology facilities, and large-scale research applications.
