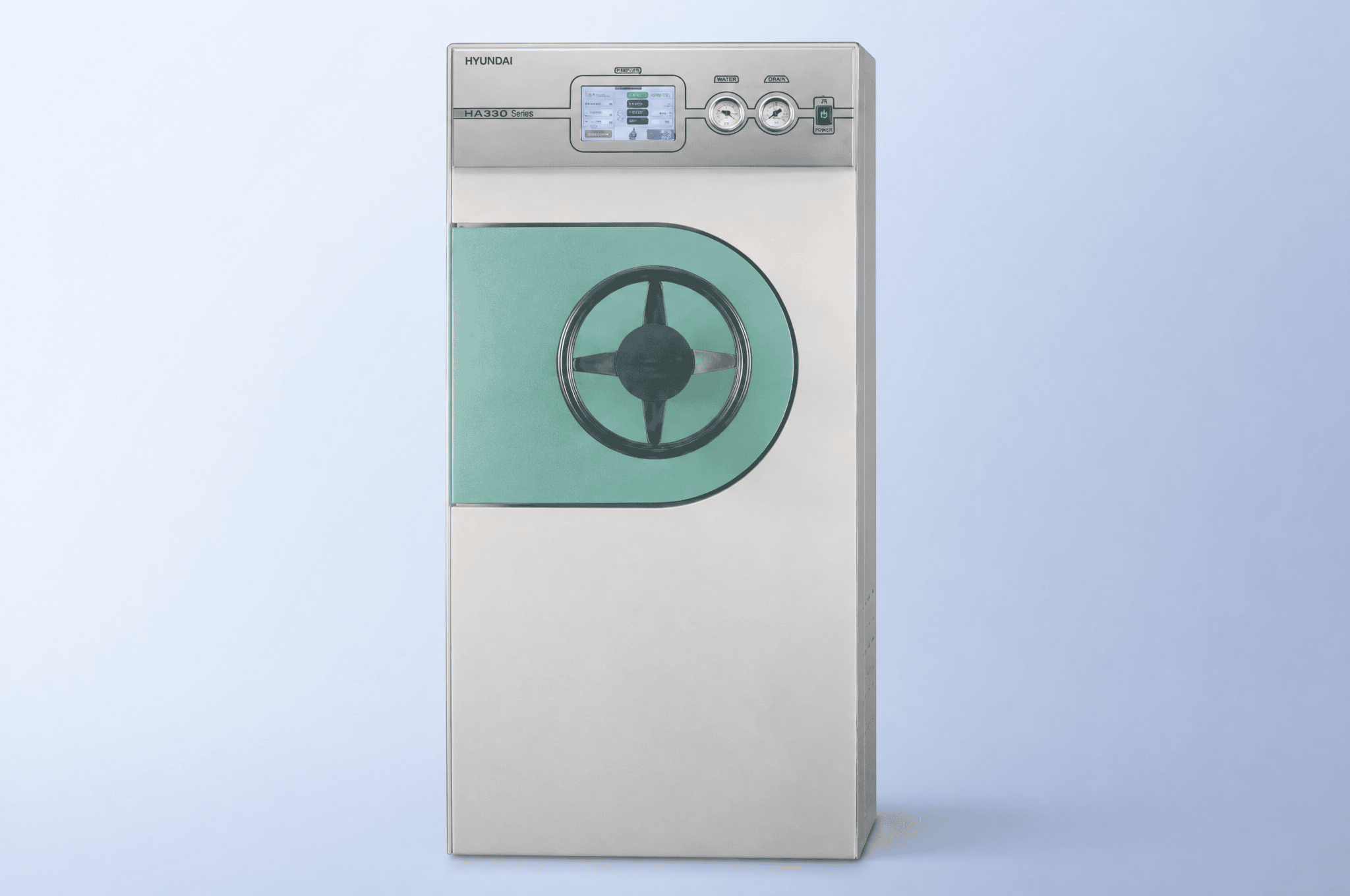

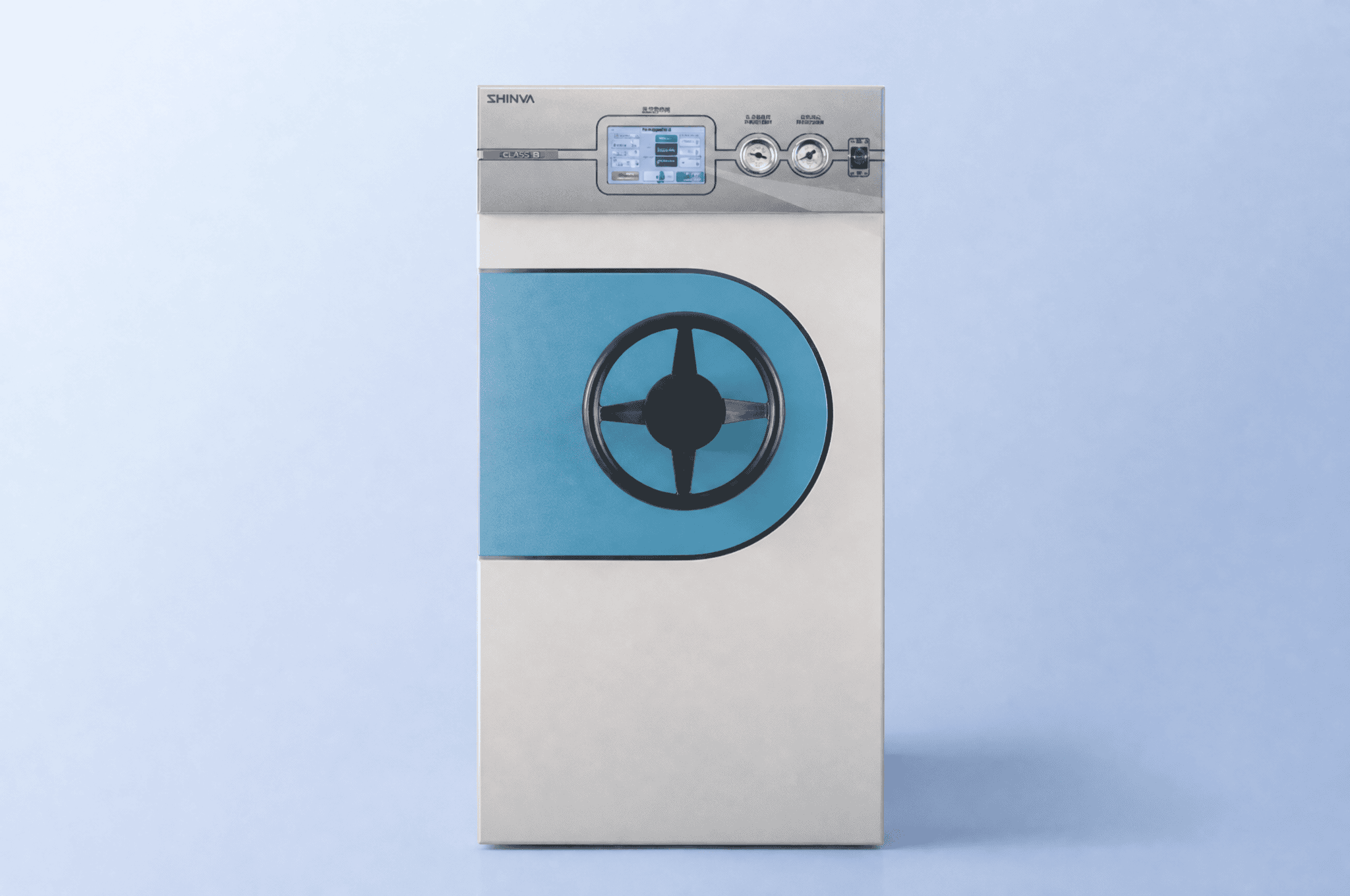

High Pressure Steam Sterilizer

Products Features

Large Capacity Horizontal Autoclave

Precision control of the chamber and jacket pressure using a digital pressure sensor and microprocessor.

Easy operation with 7” full touch LCD and user program can be set through user mode functions.

The safety of user is considered as a top priority through built-in error and alarm, safety pressure valve etc.

A self-diagnosis function can always maintain the best condition.

The most secure door lock with radial shape lever system.

Maintenance of constant sterilization temperature through automatic precision control of temperature based microprocessor.

A continuous use can be available and the thermal effect in the chamber gent larger through internal steam generation unit. (generator equipped)

Full automatic sterilization cycle of a simple structure.

Specification

NB-SS105 NB-SS210 NB-SS305
Overall Size 685(W)x1300(D)x1480(H)mm 740(W)x1400(D)x1600(H)mm 800(W)x1400(D)x1650(H)mm
Chamber Size 420Ø(diameter)x760(D)mm 520Ø(diameter)x1000(D)mm 500(W)x1000(D)x610(H)mm
Chamber Volume 105 liters 210 liters 305 liters
Chamber Material SUS316L SUS316L SUS316L
Shelf Size 210(W)x720(D)mm / 1ea 240(W)x960(D)mm / 1ea 460(W)x900(D)mm / 2ea
Temperature Range 110°C ~ 135°C 110°C ~ 135°C 110°C ~ 135°C
Control System Micro Processor Micro Processor Micro Processor
Dry System Vacuum Pump OR Steam Ejector Vacuum Pump OR Steam Ejector Steam Ejector
Operating System Pre-Vacuum System Pre-Vacuum System Pre-Vacuum System
Power Consumption Single AC220V and 9kW 3P AC220V/380V, 50/60Hz Single AC220V and 11kW 3P AC220V/380V, 50/60Hz AC220V, 3ph, 50/60Hz, 18kW Or AC380V, 3ph, 4wire, 50/60Hz
Weight 320kg 460kg 710kg
Accessory Thermal Printer(Option)

Lot-traced  ·  COA on file  ·  Sterility & mycoplasma tested

Dose of Peptide

Strength of Peptide

Water of Peptide

Results

PEPTIDE DOSE: Select dose

DRAW SYRINGE TO: Select values

Injection Calculator Syringe

YOUR VIAL CONTAINS: Select values

CONCENTRATION: Select values

ADVANCED HIGH-PRESSURE STEAM STERILIZATION

The High Pressure Steam Sterilizer is a large-capacity horizontal autoclave designed for reliable sterilization of laboratory instruments, medical devices, glassware, culture media, and research materials. Engineered with advanced microprocessor control and precision pressure monitoring, the system delivers consistent sterilization performance while maintaining user safety and operational efficiency.

Featuring a full-color 7-inch touch LCD interface, the sterilizer allows simple operation and customizable user programs for a wide range of sterilization protocols. The integrated steam generation system ensures efficient heat distribution and stable sterilization temperatures, while the pre-vacuum operating system enhances steam penetration for effective sterilization outcomes.

Product specifications.

Format

Large-capacity horizontal steam sterilizer available in 105L, 210L, and 305L models.

Purity

SUS316L stainless steel sterilization chamber with precision pressure control.

Vial sizes

Multiple chamber capacities designed for laboratory and clinical sterilization requirements.

Storage

Designed for professional laboratory, medical, and research environments.

Reconstitution

Fully automated sterilization cycle with integrated steam generation system.

COA

Technical documentation and product specifications available upon request.

RESEARCH APPLICATIONS

Laboratory Sterilization

Supports sterilization of laboratory instruments, containers, and research equipment.

Biotechnology Applications

Provides validated sterilization conditions for biotechnology workflows.

Clinical & Medical Facilities

Ideal for hospitals, clinics, and healthcare sterilization requirements.

Microbiology Research

Suitable for sterilizing culture media, glassware, and microbiological materials.

High Pressure Steam Sterilizer Faqs Questions:

The sterilizer is available in 105-liter, 210-liter, and 305-liter chamber capacities.
The sterilization temperature range is adjustable from 110°C to 135°C.
The system utilizes a microprocessor-based control system with a 7-inch touch LCD interface.
Yes. The system includes pressure monitoring, safety valves, alarms, self-diagnostic functions, and a secure radial door locking mechanism.
Is the sterilization cycle automated?
